[SKYRC] T200 200W AC 12A Dual Balance Charger (12A, AC Input)

SKYRC사의 200W급 듀얼 방식의 급속 충전기

12A까지 충전이 가능한 충전기로서 AC 입력 단자 사양입니다.

KC 인증 번호 : R-R-T6S-T200-Charger / HU071390-20013A

<Description>

T200 comes ready to charge in the most compact design yet while taking up minimal space in the pit area. Only taking up about as much bench space as a pair of battery packs, the charger delivers dedicated 100W integrated power per each of the two complete charging circuits. Inside the case, there’s enough transformer power to fill two batteries simultaneously at up to 12 amps each, that you can pump life into everything from a receiver pack to a 6S LiPo or 15S NiMH or NiCD. All the programmability you expect of a modern higher-level charger is built in!

With each charging channel programmed and operating independently, T200 allows you to charge two batteries simultaneously, and it will intelligently and automatically charge the packs at once to their maximum capacity. To top of it, the cells being charged do not even necessarily have the same configuration or be of the same chemical type.

The juice box comes with the charging algorithm for the most common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead acid). With the almost de facto standard of XT60* interface, plugging prevents reverse polarity and ensures super-solid connection.

AGM(Absorbent Glass Mat) battery is maintenance free, provides good electrical reliability and is lighter than the flooded lead acid type. However, AGM batteries are far more different than lead-acid batteries. Although both of them have the same essential components, they have different chemical structures that make them a lot different from each other. Never take the risk of charging AGM batteries with a regular charger in the normal Pb mode.

SkyRC T200 features the so-called AUTO function that sets the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two-way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!

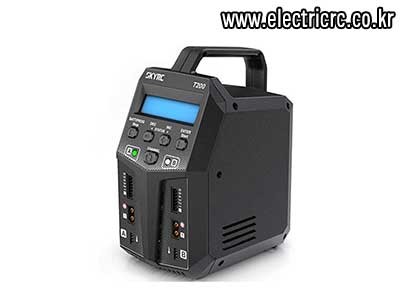

The five-button panel and the brightly backlit LCD screen making the charging a breeze even for beginners. The charging programs with the same logic as many other chargers by SkyRC, so it will be familiar to many users. But even if T200 is your first programmable charger, you’ll find it easy to learn. Users just scroll through parameters, use up/down keys to adjust values, then click a key to enter. After one run through the manual, you’ll have it down.

With the universal-voltage input circuit, you don't need hassle finding a voltage converter between 110V and 220V while traveling around!

T200 complies with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.


<Features>

Multiply the Efficiency With Duo
Multi-purpose for Most Chemistries With Generic XT60
Versatile With the Addition of Agm and Cold Modes
Optimized Operating Software
Intuitive Operation
Terminal Voltage Control(TVC)
Portable With a Handle
Universal-Voltage Input
Comply with safety and EMC regulation

<Specification>

- Case Material: Plastic
- Case Size: 178x135x96mm
- Weight: 850g
- Display Type: LCD
- Display Backlight: Blue
- DC Input Voltage: 11-18V
- AC Input Voltage : 100-240V
- Charge Wattage: 100W X 2
- Discharge Wattage: 10W
- Battery Types/Cells: LiPo/LiHV/LiFe/LiIon: 1-6cells, NiMH/NiCd: 1-15cells, Pb: 2-20V
- Battery Capacity Range: NiMH/NiCd:100-50000mAh, LiPo/LiIon/LiFe/LiHV:100-50000mAh, Pb: 100-50000mAh
- NiMH/NiCd Charge Voltage: Delta peak detection
- LiPo Charge Voltage: 4.18-4.25V/cell
- LiFe Charge Voltage: 3.58-3.7V/cell
- Pb Charge Voltage: 1.8-2.0V/cell LiIon: 4.08-4.2V/cell
- LiHV Charge Voltage: 4.25-4.35V/cell
- NiMH/NiCd Discharge Cut-off Voltage:0.1-1.1V/cell
- LiPo Discharge Cut-off Voltage:3.0-3.3V/cell
- LiFe Discharge Cut-off Voltage:2.6-2.9V/cell LiIon: 2.9-3.2V/cell
- LiHV Discharge Cut-off Voltage: 3.1-3.4V/cell
- Battery Cutoff Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable)
- Reading Voltage Range: 0.1-26.1V/cell
- Charge Current: 0.1A-12.0A
- Discharge Current: 0.1A-2.0A
- Balance Cells: 2-6 cells
- Balance Current: 500mA/cell
- Safety Timer: 1-120minutes off
- Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
- Memory: 10 different charge/discharge profiles
