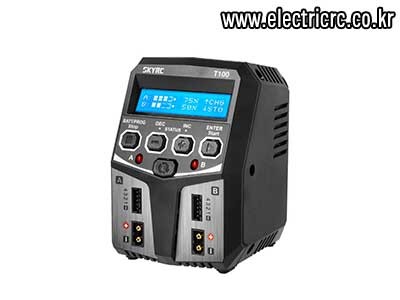

[SKYRC] T100 100W AC 5A Dual Balance Charger (5A, AC Input)

SKYRC사의 100W급 듀얼 방식의 급속 충전기

5A까지 충전이 가능한 충전기로서 AC 입력 단자 사양입니다.

KC 인증 번호 : R-R-T6S-T100-Charger / HU071390-20010A

Multi-purpose for Most Chemistries With Generic XT60

SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more efficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries on cold days.

Twin-channel Charger

SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration. You can connect different chemistry(NiMH / NiCd / LiPo / LiFe / Lilon / LiHV / Pb)batteries into any of the charging ports.

AGM & Cold Charge Modes for PB Battery

SkyRC T100 can charge AGM(Absorbent Glass Mat) battery and also can be used for charging PB battery at very low temperatures.

Embedded XT60 Battery Connector

By embedding the XT60 battery connector in the charger, it is more convenient & safer for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.

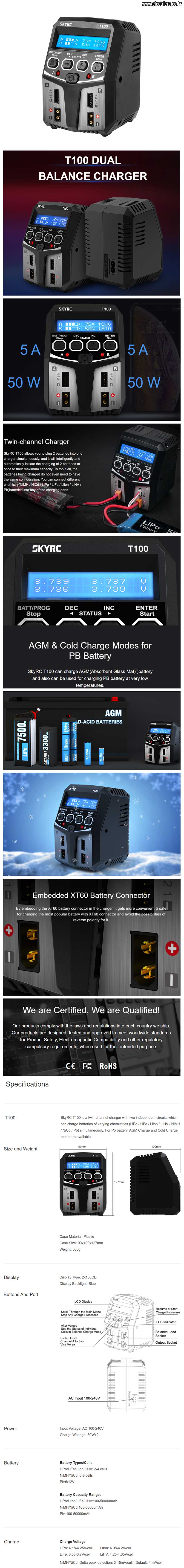

<Specification>

Size and Weight
- Case Material: Plastic
- Case Size: 90x100x127mm
- Weight: 500g

Display
- Display Type: 2x16LCD
- Display Backlight: Blue

Power
- Input Voltage: AC 100-240V
- Charge Wattage: 50Wx2

Battery
- Battery Types/Cells:
- LiPo/LiFe/LiIon/LiHV: 2-4 cells
- NiMH/NiCd: 6-8 cells
- Pb:6/12V
- Battery Capacity Range:
- LiPo/LiIon/LiFe/LiHV:100-50000mAh
- NiMH/NiCd:100-50000mAh
- Pb: 100-50000mAh

Charge and Discharge
Charge Voltage
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cellNiMH/NiCd: Delta peak detection: 3-15mV/cell ; Default: 4mV/cell

Discharge Cut-off Voltage
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cellLiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cellNiMH/NiCd:0.1-1.1V/cell

Charge Current: 0.1A-5.0A
Balance Cells: 2-4 cells
Balance Current: 300mA/cell
Safety Timer: 1-720minutes & OFF
Charge Method:CC/CV for Lithium batteries.
Delta-peak Sensitivity for NiMH/NiCd batteries.
CC/CV and float charge for PB batteries.
Includes UK 240v input lead and no charge or balance leads.
