[TR] OSD Video DownLink System(w/GPS/GLONASS) - Universal Type

타롯사의 범용 OSD Video, Downlink System.

비행기, 자동차, 헬기 및 드론에 이르기까지 RC 모델에는 모두 적용이 가능한 유니버설 타입 OSD 오버레이 시스템.

자체적으로 GLONASS GPS 수신기를 탑재, 아울러 기압계 센서 및 컴파스, 자이로스코프 및 가속도 센서를 내장, 기체의 고도 및 거리, 위상각 및 방위각, 배터리 전압까지 일목요연하게 모니터상에 데이터를 디스플레이 해주는 장치입니다.

Tarot production of new mini-OSD, applicable to all types of aircraft recreation, professional sports and other aircraft movement.

This OSD not only has a very mini-size, and the internal program is highly integrated, easy to operate, can detect the current state of the aircraft, compatible with most of the GPS and camera supporting the use of user-friendly.


<Product parameters>

- Power: DC6-26V (with reverse protection, with camera voltage output, the output voltage and input voltage equal)
- Operating ambient temperature: -15 to 75 degrees Celsius
- Net weight: about 5.8g (only OSD, does not contain GPS, camera, etc.)
- Menu Language: Chinese, English
- Product Size: 58 * 20 * 5.5mm
- Can be equipped with camera: P system / N system
- Storage environment: -30-60 degrees Celsius
- Power consumption: <0.7W (OSD only)
- Sensors: compass, barometer, gyroscope, accelerometer

<Features>

1. With barometer and gyroscope, can read the flight height, speed, distance, attitude angle, direction and range;
2. No need to connect flight control to run independently;
3. Installation direction can be set according to user needs, set automatically after the adjustment of data, does not affect the normal use;
4. Small size, the burden of flying small, suitable for flight through the aircraft;
5. There are time functions, can be accumulated flight time;
6. During the flight can be real-time monitoring of voltage, to avoid the flight of the aircraft without the risk of crash;
7. Compatible with different baud rates, most of the common GPS (Universal GPS protocol is NEMA0183);
8. Set up simple, clear display interface;
9. Free computer settings of the parameters, you can turn on or off the data display;
10. Two main interface options: Chinese interface / English interface to facilitate the use of different groups of people;
11. The camera can automatically recognize the N system.
12. Can be determined by remote control home orientation, can also be set to automatically set the home position or set the home position through the button.


<Product Specifications>

- OSD video overlay system × 1
- GPS(GLONASS) module × 1
- OSD-GPS cable × 1
- 3M posted × 1
- Manual x 1

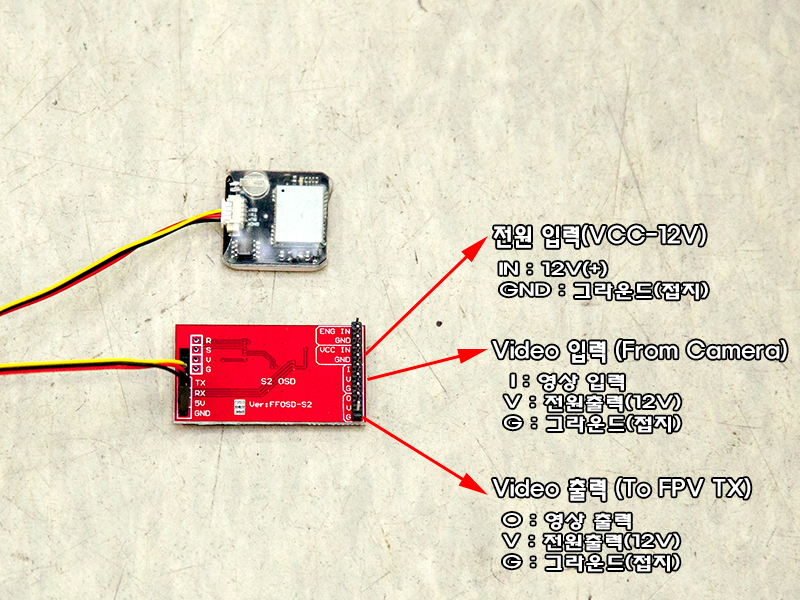

연결 배선도는 아래를 참고 하세요.

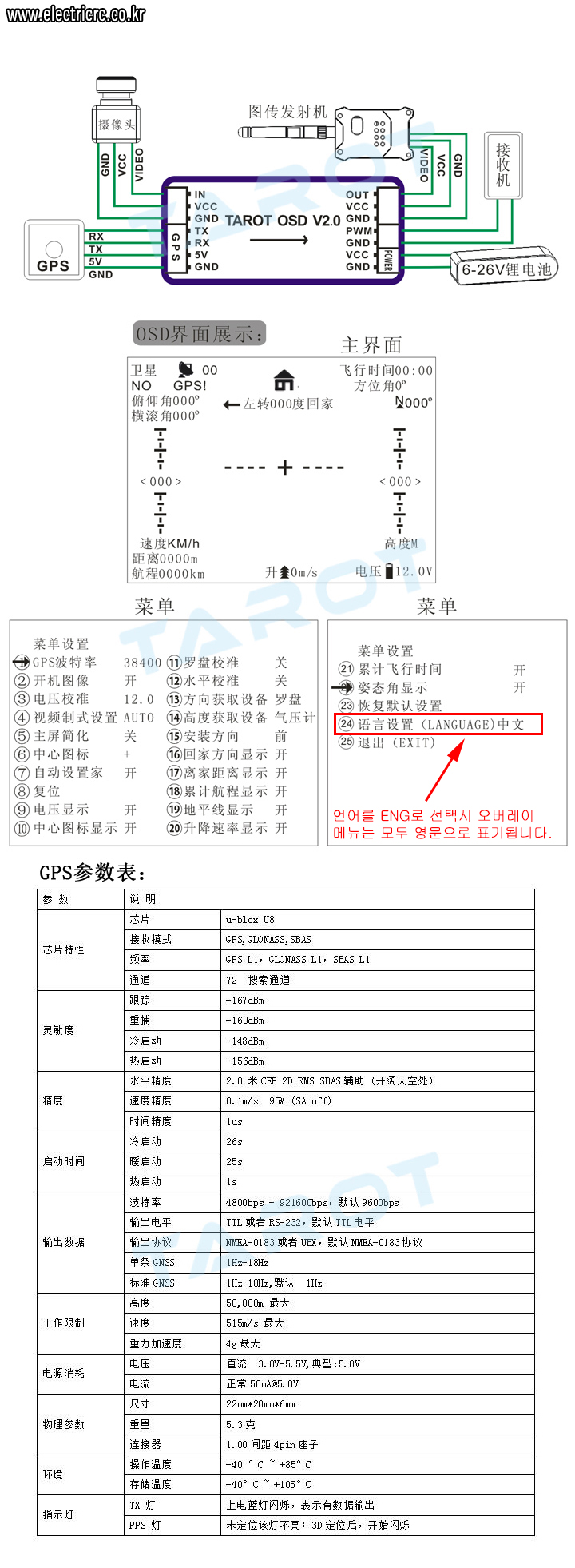

<제품 이미지>

OSD 상의 메뉴는 언어를 ENG로 변경 하시면 모두 영문으로 표기 됩니다.
